UMM Cnc Horizontal Heavy Duty Milling Machine

UMM Ram Type

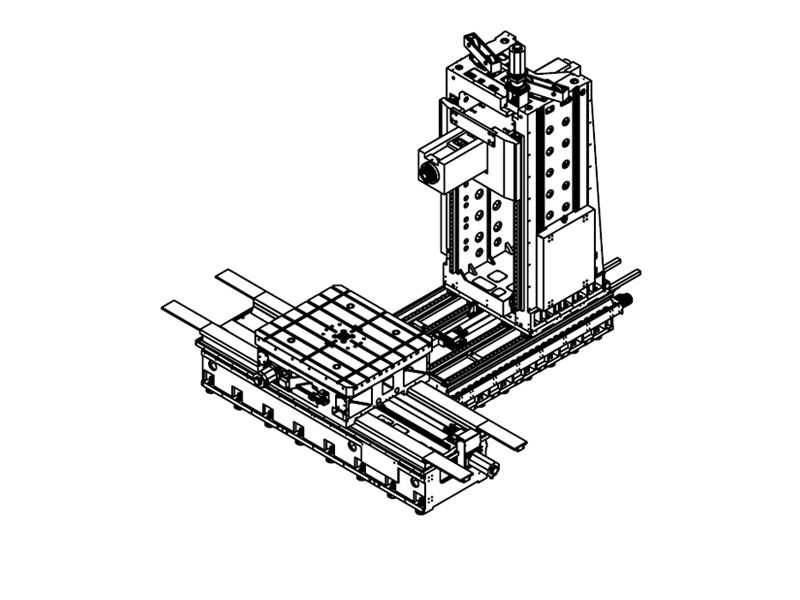

  • Features:

    • W-axis is a square ram structure. Extension is 600mm (800mm optional)
    • Box ways on X-axis. Linear guide ways are optional.
    • Y-axis is supported by 4 linear guide ways. The front two are 55mm roller type linear guide ways with 3 blocks on each way. The back two are 35mm roller type linear guide ways with 2 blocks on each way. This design provides effective suppression for spindle defection.
    • The spindle is center-mounted for superb rigidity.
    • Z-axis is fitted with 4 sets of 55mm roller type linear guide ways, featuring maximum rigidity and stability.
  • MODEL UNIT UMM-2216W UMM-2616W UMM-3216W UMM-4216W UMM-2016RW UMM-2016RWA UMM-2516RW UMM-3216RW UMM-4216RW
    TABLE Table Size mm 2000X1400 2400X1400 3000X1400 4000X1400 1250X1250X1̊ 1250x1250x1°(twin station) 1400X1600X0.001̊
    T-slots Size mm 22 22 24
    Maximum Load kg 15000 18000 20000 25000 5000 8000
    TRAVEL X-Axis mm 2200 2600 3200 4200 2000 2500 3200 4200
    Y-Axis mm 1600(2000) 1600(2000)
    Z-Axis mm 1200(1700) 1200(1600) 1200(1700)
    W-Axis (Ram type) mm 600(800) 600(800)
    SPINDLE Speed rpm 6000(4000) 6000(4000)
    Taper 　 7/24 Taper ISO.50, BT-50 7/24 Taper ISO.50, BT-50
    DISTANCES Spindle Center to Table Surface mm 250-1850(2250) 250-1850(2250)
    Spindle Nose to Table Center mm 200-2000(2500) {(0-2000(2500)} 200-2000(2400) {(0-2000(2400)} 200-2000 {(0-2000(2500)}
    Height From Ground to Table Surface mm 1250 1250
    FEED RATE Rapid Feed Rate X / Y / Z / W m/min 10 10
    Minimum Setting mm/min 0.001 0.001
    Cutting Feed Rate mm/min 1~5000 1~5000
    MOTOR Spindle Servo Motor-cont. / 30min kW 22/26 22/26
    Axis X / Y / Z / W / B kW 7/4/4/4/4 7/4/4/4/7
    Lubricator Motor kW 0.15 0.15
    Hydraulic Pump kW 2.25 2.25
    Coolant Pump kW 1.62 1.62
    Chip Conveyor kW 0.25 0.25
    Oil Cooler Pump kW 3.6 3.6
    ATC No. of Tools pieces (24, 32, 40, 60) (24, 32, 40, 60)
    Tool Selection 　 Absolute Absolute
    Tool Change Time (apporox.) (T to T) Sec. 15 15
    Max. Tool-Diameter / Length mm Ø125/Ø250 (Without Adjacent Tool) / Length 400 Ø125/Ø250 (Without Adjacent Tool) / Length 400
    Max. Tool Weight kg 25 25
    COOLANT &
    LUBRICATION    		 Coolant Tank Volume L 400 400
    Hydraulic Tank Volume L 80 80
    Lubrication Tank Volume L 8 8
    MISCELLANEOUS Power Required kVA 55 55
    Pressurized Air kg/cm² 6 6
    Machine Weight Ton 26 29 31 37 27 31 28 29 30

  • standard accessories:

    1. Spindle oil cooler
    2. Automatic power off
    3. Hydraulic system
    4. Coolant system
    5. Lubricator system
    6. Alarm lamp
    7. Work lamp
    8. M.P.G.
    9. RS232 interface
    10. Heat exchanger
    11. Chip conveyor and cart
    12. Leveling bolts & pads
    13. Controller manuals and circuit diagram
    14. Operation manuals
    15. Machine inspection lists
    16. Toolbox with spanners & wrenches
    17. FANUC 0i-MF
    18. Splash guards (around the operator and work table)

    optional accessories:

    1. Y-axis travel: 2000 mm
    2. Z-axis travel: 1700 mm
    3. Linear scale on X, Y, Z, W axes
    4. ATC: 24, 32, 40, 60 Tools
    5. Air conditioner at the electrical cabinet
    6. Coolant through spindle
    7. Large splash guards (around the machine)
    8. Rotary table: 1800x1600mm/0.001°
    9. load: 15 tons
    10. Simultaneously controlled rotary table
    11. Ø1650mm rotary table for turning
